The GW-M5610 series is inspired by the iconic design of the DW-5000C, which first appeared on the scene in 1983.
This popular series has evolved with features such as Tough Solar technology and Multi-Band 6. While retaining the classic case shape and dial design of the original DW-5000, it adds a modern touch with a black case and band paired with a reverse LCD display.
Features
Case size (L×W×H)
46.7 × 43.2 × 12.7 mm
Weight
52 g
Case and frame material
Resin
Bracelet
Resin bracelet
Structure
Shock resistance
Waterproofing
Waterproof up to 20 bar
Setting the time
Radio-controlled watch; multi-band 6
Power and battery life
Tough Solar (solar)
Outside
Glass
Mineral glass
Watch functions
Universal Time
5 hours worldwide
31 time zones (48 cities + Coordinated Universal Time), Daylight Saving Time on/off, Home City/World Time City change
Stopwatch
1/100th of a second stopwatch
Measuring capacity:
00'00''00~59'59''99 (during the first 60 minutes)
1:00'00~23:59'59 (after 60 minutes)
Unit of measurement:
1/100th of a second (for the first 60 minutes)
1 second (after 60 minutes)
Measurement modes: Elapsed time, split time, 1st and 2nd place times
Timer
Countdown
Unit of measurement: 1 second
Countdown range: 24 hours
Countdown start time setting range: 1 second to 24 hours (1 second, 1 minute, and 1 hour increments)
Alarm/hour signal
5 daily alarms (with 1 reminder alarm)
Hour signal

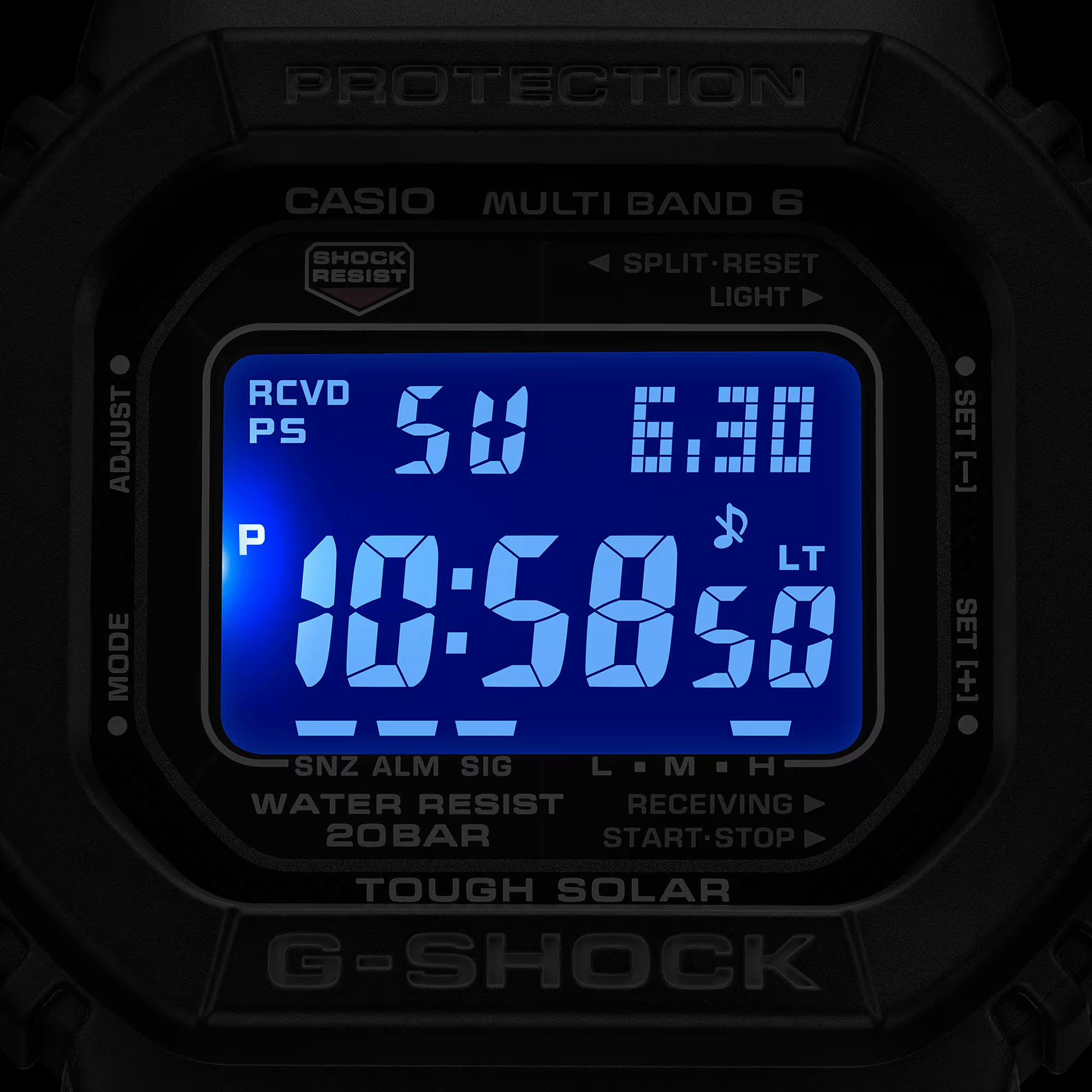

Lighting
LED backlight (Super Illuminator)
Fully automatic LED lighting, selectable lighting duration (1.5 or 3 seconds), afterglow
Color of light
LED: white
Calendar
Full automatic calendar (up to the year 2099)
Mute function
Enabling/Disabling Button Tone
Energy saving function
Power saving (screen turns off to save power when the watch is left in the dark)
Battery level display/alert
Battery level indicator
Operating time
Approximate battery life:
10 months on rechargeable battery (operating period with normal use without exposure to light after charging)
22 months on rechargeable battery (operating period when stored in complete darkness with energy saving function activated after full charge)
Precision
Accuracy: ±15 seconds per month
Other functions
12/24 hour format
Change date/month display
Day display (days of the week can be selected in six languages)
Standard time indication:
Hour, minute, second, 12-hour format, month, date, day
Time Setting Details
Receiving the time calibration signal
Auto-receive up to six* times per day (remaining auto-receives are canceled as soon as one is successful)
*5 times a day for Chinese calibration signal
Manual reception
Latest signal reception results
Time calibration signals
Station Name: DCF77 (Mainflingen, Germany)
Frequency: 77.5 kHz
Station Name: MSF (Anthorn, England)
Frequency: 60.0 kHz
Station Name: WWVB (Fort Collins, USA)
Frequency: 60.0 kHz
Station Name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima)/60.0 kHz (Fukuoka/Saga)
Station Name: BPC (Shangqiu, Henan Province, China)
Frequency: 68.5 kHz
